Product

Lenses
Lenses

Lenses / Welding glass

Features
A full range of safety lenses and welding lenses for industrial use are available such as CR39 lenses (1000 Hour lenses) acting as anti-spatter lenses, chipping lenses, magnifying lenses, glass filter lenses, shaded lenses, welding glasses, and gold-mirror lenses.
Description
Full range of safety lenses portfolio, including: CR39 lens (1000 Hour lenses) acting as anti-spatter cover lenses, chipping lenses, glass filter lenses, shaded lenses, gold mirror lenses, magnifying lenses

FL24-S

welding lenses

GL24-S

welding glasses

CL24

Can be used as Chipping Lens or cover lens

CR39

Cover Lens

GPL24IR

FL34-S / CL34

FL45-S / CL45

Can be used as Chipping Lenses or Cover lenses

CL50 / FL50-S / GL50-S5

Can be used as Cover lenses or Welding lenses

ML75, ML100, ML125, ML150, ML175, ML200, ML225

Specification

COVER LENS

ITEM NO. MATERIALS SIZE STANDARD
CL24 Clear Polycarbonate 2" x 4.25" CE EN166
ANSI Z87.1+
AS/NZS 1337.1
CL45 4.5" x 5.25" ANSI Z87.1
CL34 90mm x110mm ANSI Z87.1
CL50 50mm ANSI Z87.1
CR39 Clear Thermoresistant Composite Resin 2" X 4.25" CE EN166
AS/NZS 1337.1

FILTER LENS

ITEM NO. MATERIALS SIZE SPECIFICATIONS
FL24-S Polycarbonate 2" x 4.25" x 3.0mm Different shades of filter lens are available under the minimum quantity of each shade.
FL45-S 4.5" x 5.25" x 3.0mm
FL34-S 90mm x110mm x 3.0mm
FL50-S 50mm x 3.0mm

GOLDEN PLATED LENS

ITEM NO. MATERIALS SIZE STANDARD
GL24-S8~13 GLASS 2" x 4.25" AS/NZS 1338.1
CE EN169 CERTIFIED
GL50-S5 50mm AS/NZS 1338.1
CE EN169 CERTIFIED

GOLDEN PLATED LENS

ITEM NO. MATERIALS SIZE STANDARD
GPL24IR10 Polycarbonate 2" x 4.25" x 3.0mm For other shade numbers, a minimum order quantity is required
GPL24IR11
GPL24IR12

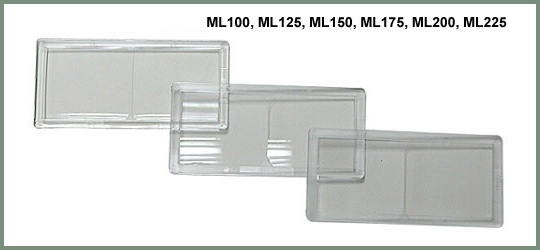

MAGNIFYING LENS

ITEM NO. MATERIALS SIZE DIOPTER
ML-75 Polycarbonate 2" x 4.25" x 3.0 mm 75°
ML-100 100°
ML-125 125°
ML-150 150°
ML-175 175°
ML-200 200°
ML-225 225°
ML-250 250°
